Developing a simple MRU List

If you are developing an application and you need a simple MRU list, here I left my system. The MRU acronym stands for Most Recently Used, and that's very useful when we are working with documents and we want to open the last document opened. To implement this in our application in a simple way, we only need to do this:

In our MainMenu item we need to add 5 new subitems called MRU1 to MRU5 and a separator called separatorMRU.

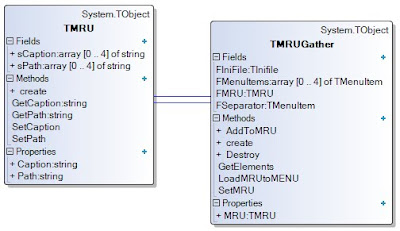

After that, I've designed the following classes to accomplish my goal:

The TMRUGather is the one who manages the information with the MenuItems and the MRU Object. We'll need to create an instance of this class, and it will control the MRU list in the menu section.

The code of the unit is the following:

uMRU.pas:


unit uMRU;

interface

uses
menus, iniFiles;

type
TMRU = class(TObject)
sCaption: array [0 .. 4] of string;
sPath: array [0 .. 4] of string;
private
function GetCaption(Index: Integer): string;
procedure SetCaption(Index: Integer; Value: string);
function GetPath(Index: Integer): string;
procedure SetPath(Index: Integer; Value: string);
public
property Caption[Index: Integer]: string read GetCaption write SetCaption;
property Path[Index: Integer]: string read GetPath write SetPath;
constructor create();
end;

TMRUGather = Class(TObject)
private
FMRU: TMRU;
FMenuItems: array [0 .. 4] of TMenuItem;
FSeparator: TMenuItem;
FIniFile: TInifile;
procedure GetElements();
procedure SetMRU(const Value: TMRU);
procedure LoadMRUtoMENU();
public
property MRU: TMRU read FMRU write SetMRU;
constructor create(ini: String; MRU1, MRU2, MRU3, MRU4, MRU5: TMenuItem; separator: TMenuItem);
destructor Destroy(); override;
procedure AddToMRU(Path: string; Caption: string);
End;

implementation

uses
SysUtils;

{ MRUObject }

constructor TMRU.create;
begin
self.sCaption[0] := 'MRU1';
self.sCaption[1] := 'MRU2';
self.sCaption[2] := 'MRU3';
self.sCaption[3] := 'MRU4';
self.sCaption[4] := 'MRU5';

self.sPath[0] := '';
self.sPath[1] := '';
self.sPath[2] := '';
self.sPath[3] := '';
self.sPath[4] := '';
end;

function TMRU.GetCaption(Index: Integer): string;
begin
if (Index >= 0) and (Index <= 4) then
Result := sCaption[Index]
else
Result := '';
end;

function TMRU.GetPath(Index: Integer): string;
begin
if (Index >= 0) and (Index <= 4) then
Result := sPath[Index]
else
Result := '';
end;

procedure TMRU.SetCaption(Index: Integer; Value: string);
begin
if (Index >= 0) and (Index <= 4) then
sCaption[Index] := Value;
end;

procedure TMRU.SetPath(Index: Integer; Value: string);
begin
if (Index >= 0) and (Index <= 4) then
sPath[Index] := Value;
end;

{ MRUGather }

procedure TMRUGather.AddToMRU(Path, Caption: string);
var
MRU1, MRU2, MRU3, MRU4, MRU5: TMenuItem;
i: Integer;
begin
MRU1 := FMenuItems[0];
MRU2 := FMenuItems[1];
MRU3 := FMenuItems[2];
MRU4 := FMenuItems[3];
MRU5 := FMenuItems[4];

if MRU1.Caption = 'MRU1' then
begin
MRU1.Caption := Caption;
MRU1.Hint := Path;
MRU.Caption[0] := Caption;
MRU.Path[0] := Path;
end
else if MRU2.Caption = 'MRU2' then
begin
MRU2.Caption := Caption;
MRU2.Hint := Path;
MRU.Caption[1] := Caption;
MRU.Path[1] := Path;
end
else if MRU3.Caption = 'MRU3' then
begin
MRU3.Caption := Caption;
MRU3.Hint := Path;
MRU.Caption[2] := Caption;
MRU.Path[2] := Path;
end
else if MRU4.Caption = 'MRU4' then
begin
MRU4.Caption := Caption;
MRU4.Hint := Path;
MRU.Caption[3] := Caption;
MRU.Path[3] := Path;
end
else if MRU5.Caption = 'MRU5' then
begin
MRU5.Caption := Caption;
MRU5.Hint := Path;
MRU.Caption[4] := Caption;
MRU.Path[4] := Path;
end
else if (MRU1.Caption <> 'MRU1') and (MRU2.Caption <> 'MRU2') and (MRU3.Caption <> 'MRU3') and (MRU4.Caption <> 'MRU4') and (MRU5.Caption <> 'MRU5') then
begin
MRU5.Caption := MRU4.Caption;
MRU5.Hint := MRU4.Hint;
MRU4.Caption := MRU3.Caption;
MRU4.Hint := MRU3.Hint;
MRU3.Caption := MRU2.Caption;
MRU3.Hint := MRU2.Hint;
MRU2.Caption := MRU1.Caption;
MRU2.Hint := MRU1.Hint;

MRU1.Caption := Caption;
MRU1.Hint := Path;
for i := 0 to 3 do
begin
MRU.Caption[4 - i] := MRU.Caption[3 - i];
MRU.Path[4 - i] := MRU.Path[3 - i];
end;
MRU.Caption[0] := Caption;
MRU.Path[0] := Path;
end;

for i := 0 to 4 do
begin
FIniFile.WriteString('MENU', 'MRU' + intToStr(i + 1), MRU.Caption[i]);
FIniFile.WriteString('MENU', 'PATHMRU' + intToStr(i + 1), MRU.Path[i]);
end;
LoadMRUtoMENU();
end;

constructor TMRUGather.create(ini: String; MRU1, MRU2, MRU3, MRU4, MRU5: TMenuItem; separator: TMenuItem);
begin
FMRU := TMRU.create();
FMenuItems[0] := MRU1;
FMenuItems[1] := MRU2;
FMenuItems[2] := MRU3;
FMenuItems[3] := MRU4;
FMenuItems[4] := MRU5;
FSeparator := separator;
FIniFile := TInifile.create(ini);
GetElements();
LoadMRUtoMENU();
end;

destructor TMRUGather.Destroy;
begin
FreeAndNil(FIniFile);
FreeAndNil(FMRU);
inherited;
end;

procedure TMRUGather.GetElements();
var
i: Integer;
begin
for i := 0 to 4 do
begin
MRU.Caption[i] := FIniFile.ReadString('MENU', 'MRU' + intToStr(i + 1), 'MRU' + intToStr(i + 1));
MRU.Path[i] := FIniFile.ReadString('MENU', 'PATHMRU' + intToStr(i + 1), '');
FMenuItems[i].Caption := MRU.Caption[i];
FMenuItems[i].Hint := MRU.Caption[i];
end;
end;

procedure TMRUGather.LoadMRUtoMENU();
var
i: Integer;
allVisible: boolean;
begin
allVisible := true;
for i := 0 to 4 do
begin
FMenuItems[i].Visible := (FMenuItems[i].Caption <> 'MRU' + intToStr(i + 1));
allVisible := allVisible and FMenuItems[i].Visible;
end;
FSeparator.Visible := allVisible;
end;

procedure TMRUGather.SetMRU(const Value: TMRU);
begin
FMRU := Value;
end;

end.


On the Create of the form, we need to declare our MRU object:


MRUGather: TMRUGather;
MRUGather := TMRUGather.Create(iniFile, MRU1, MRU2, MRU3, MRU4, MRU5, separatorMRU);


And with the AddToMRU method, we'll add a new item on the entry list. The class manages everything, from adding the MRU inside an Ini file to pushing the list when is full.


MRUGather.AddToMRU(loadFolder, sCaption);


If the MRU object is running, then we can see the results in our Main Menu Item:

Then, we need to program the events on the MRU subItems to open the document we want.


procedure TfrmMain.MRU1Click(Sender: TObject);
var
i: Integer;
begin
for i := 0 to 4 do
if TMenuItem(Sender).Name = 'MRU' + inttostr(i + 1) then
if TMenuItem(Sender).Caption <> 'MRU' + inttostr(i + 1) then
load(MRUGather.MRU.Path[i]);
end;
